Product Name:

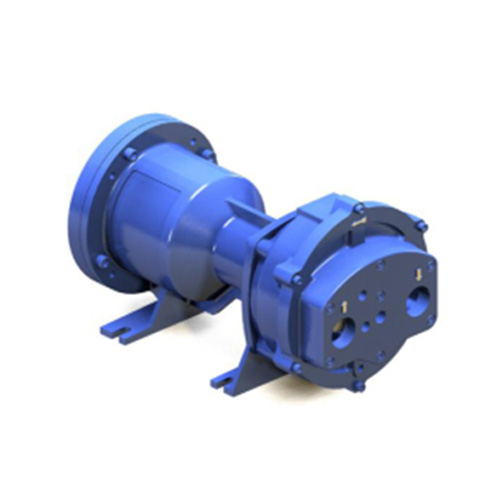

SX Small liquid ring vacuum pump

Products feather：the excellent performance and reliability of liquid ring vacuum pump have been verified for more than 100 years，and the new small Vectra SX has also meets this high standard.

Vectra SX series products characterized by high quality and small size. The R&D engineer used modern tech ，such as simulation modeling、finite element analysis and computation fluid dynamics，combined with there decades of development experience ，apply it to the design and production，thus provide higher value products to customers. The result show that Vectra SX has excellent performance and lower operation costs，and it’s special structural design meets the requirements for customer in industrial filed.

Applied to strict working condition

Vectra SX liquid ring pumps can provide lower operation costs and more value.the running speed ensure pumps has less wear、high efficiency and long life. As low water volume and power consumption，which reduce the costs.Vectra SX is design to avoid rated working point of motor and prolong the life.

Vectra SX‘s design include high-quality parts，such as precision cast stainless steel rotor which is the standard spec of liquid ring pumps. Cast iron pump contain a stainless liner to reduce internal erosion and hold high efficiency.the GSV design is also an advantage for us. It can improve the pumping and prolong life under vacuum space.

Basic parameters

Vacuum range	0-29 in Hg vac To 33mbar abs.
Mechanical seal	single
Compression pressure	0-20psig To 2.3bar abs.
Material	cast iron，stainless steel turbine（304/316）、 stainless steel lined（optional） stainless steel cast（304/316）

Benefits	Advantage
high efficiency	lower operation costs
design	suitable for 50/60H
only one rotating part	long-term reliability
Variable inlet/outlet design	Usability and high efficiency
GSV design	Improve performance at high vacuum
Stainless steel lined（optional）	Better corrosion resistance
apply to special working condition	Excellent performance and reliability
Quite operation	High safety /improve working environment
Built-in mechanical seal	No medium leakage
use ordinary motor	higher configuration
performance test	reliable and long time running no failure
More than 100 years application experience	Reliable safety and reassuring

Type	application
High Vacuum	Central vacuum processing system、vacuum degassing、vacuum distillation、vacuum drying、vacuum evaporation、vacuum impregnation、vacuum sterilization、steam recovery、exhaust gas、lab vacuum、vacuum startup
large water	Plastic extrusion, molding, poultry processing, filling, filtering, vacuum transportation, milking, soil remediation
compressor	Sewage treatment, biogas, ventilation, gas aeration
