Current Location :Product >Refurbished vacuum pump > VDN301 / VDN401 Oil Sealed Rotary Vane Vacuum Pump
Product Name:
VDN301 / VDN401 Oil Sealed Rotary Vane Vacuum Pump

● Low noise:Optimized design achieved quiet running.

● Easy maintenance:Pump body can be removed without disconnecting the inlet vacuum pipes.

Checking, adding and changing oil are done at the same side of the pump to facilitate greater ease in performing routine maintenance and inspection. A variable oil volume is adopted to extend the complementary time of oil.

● Forced oil circulation system ensures stable pumping speed around atmospheric pressure

When equipped with optional oil mist trap and oil return mechanism, these pumps can run continuously at pressures equal to or below atmospheric pressure.

Applications

•  Evaporation, sputtering and ion plating.

•  Gas substitution, back-filling and vacuum insulation.

•  Vacuum drying, freeze drying, vacuum degassing.

•  Analytical instruments and leak testers.

•  Vacuum packing, vacuum adsorption and transport,vacuum molding and vacuum casting.

Main Parameters


Type VDN301 VDN401

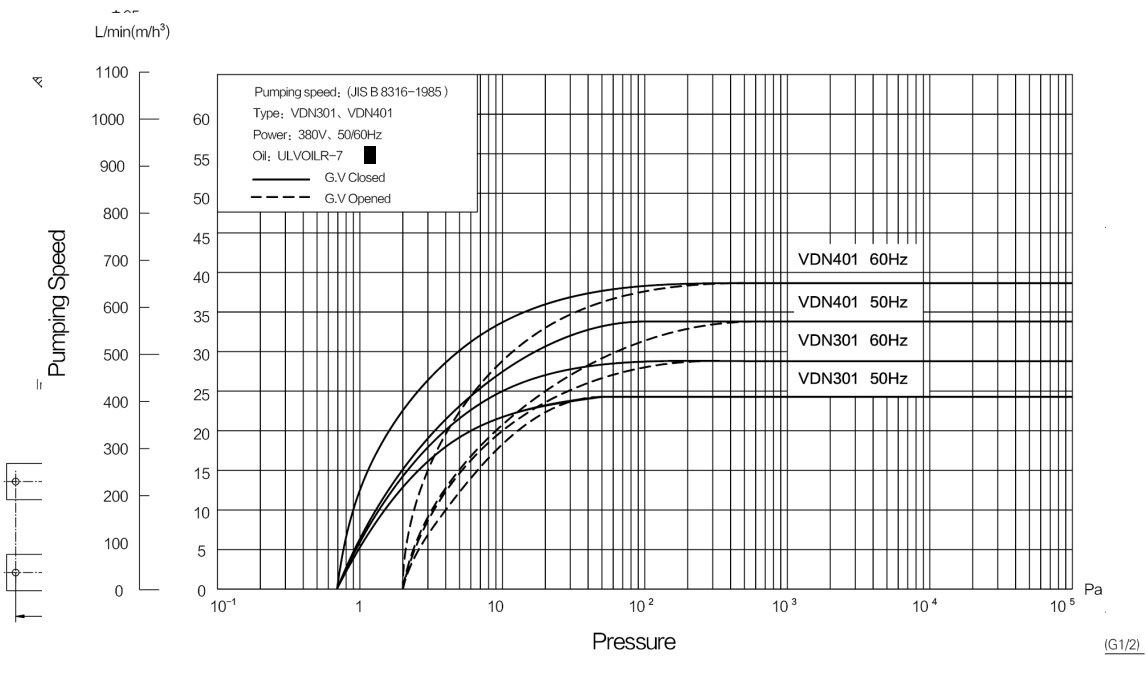

Designed pumping speed 50/60Hz m³h(L/min) 30/36 ( 500/600 ) 40/48 ( 667/800 )
Ultimate pressure*1 Pa G.V Closed*2 6.7×10-1
G.V Opened*2 2.0
Motor kw ( Poles ) 1.1(4P) 1.5(4P)
V-Hz 200/220/380/400/415-50     200/220/380/400/460-60
Oil capacity L 1.0-2.5
Pump oil ULVOIL R-7
lnlet (JIS B 2290) VG40
Outlet (JIS B 2290) VG40
weight kg 59 61


***The content above originates from website of ULVAC https://www.ulvac.co.jp/.***
