Product Name:R5 RA 0063/0100 F Oil-Lubricated Rotary Vane Vacuum Pump
R5 RA oil-lubricated rotary vane vacuum pumps are real all-rounders. They have been designed for a wide range of industrial applications, for example vacuum packaging, food processing, pneumatic conveying, plastics processing and many more.
These vacuum pumps are characterized by high pumping speeds even in low pressure ranges and therefore rapid evacuation times.
They feature highly durable high performance vanes as standard, ensuring excellent performance and a long service life.
R5 RA vacuum pumps are designed for continuous operation. An integrated float valve regulates the oil return depending on the oil level.
Vacuum pumps of the RA series are ultimate pressure-proofed. They can be operated continuously at ultimate pressure without overheating.
Advantages:
1.Reliable:Robust construction, highly durable fiber-reinforced epoxy resin vanes, proven rotary vane technology, long service life;
2.High Performance: High pumping speed at low pressures, designed for continuous operation;
3.Flexible: Various design options available, easy adaption to individual customer requirements and processes.
Accessories
· Gas-ballast valve
· Various inlet filters
· Filter pressure gauge
· Oil level switch
· Vacuum pump oils for all applications
· Vacuum regulating unit
Main Parameters
(ISO 50Hz)
| TECHNICAL DATA | R5 RA 0063 F | R5 RA 0100 F |

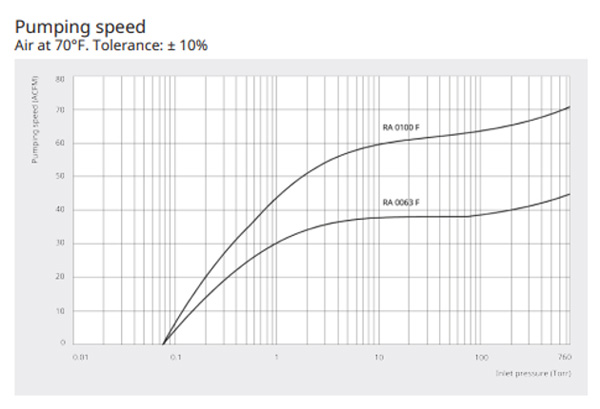

| Nominal pumping speed | 63 m3/h | 100 m3/h |
| Ultimate pressure | 0.1 hPa (mbar) | 0.1 hPa (mbar) |
| Nominal motor rating | 2.0 kW | 2.7 kW |
| Nominal motor speed | 1500 min-1 | 1500 min-1 |
| Power consumption at 100 mbar | 1.3KW | 1.9KW |
| Power consumption at ultimate pressure | 0.7KW | 1.2KW |
| Noise level (ISO 2151) | 64 dB(A) | 65 dB(A) |
| Oil capacity | 2 l | 2 l |
| Weight approx. | 55 kg | 73 kg |

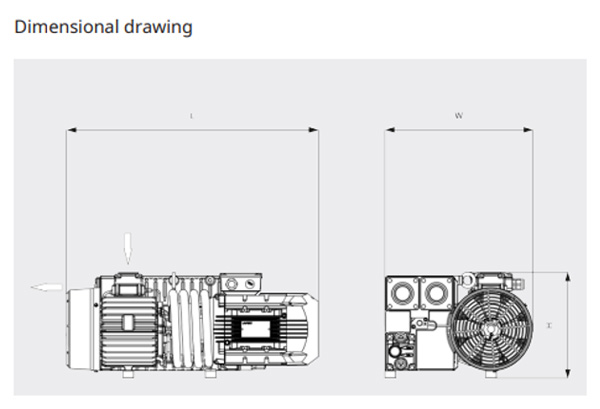

| Dimensions (L x W x H) | 627 x 406 x 290 mm | 701 x 406 x 290 mm |
| Gas outlet | G 1¼" | G 1¼" |
| Gas inlet | G 1¼" | G 1¼" |
(ISO 60Hz)
| TECHNICAL DATA | R5 RA 0063 F | R5 RA 0100 F |
| Nominal pumping speed | 76 m3/h | 120 m3/h |
| Ultimate pressure | 0.1 hPa (mbar) | 0.1 hPa (mbar) |
| Nominal motor rating | 2.4 kW | 3.4kW |
| Nominal motor speed | 1800 min-1 | 1800 min-1 |
| Power consumption at 100 mbar | 1.5KW | 2.4KW |
| Power consumption at ultimate pressure | 0.8KW | 1.5KW |
| Noise level (ISO 2151) | 67 dB(A) | 68 dB(A) |
| Oil capacity | 2 l | 2 l |
| Weight approx. | 55 kg | 73 kg |
| Dimensions (L x W x H) | 627 x 406 x 290 mm | 701 x 406 x 290 mm |
| Gas outlet | G 1¼" | G 1¼" |
| Gas inlet | G 1¼" | G 1¼" |
Market & Applications
Analytics and R&D
Freeze drying
Evaporation
Coating
Chemical and pharmaceutical industries
Filtration
Evaporation
Distillation
Freeze drying
Drying
Solvent recovery
Pneumatic conveying
Electric power generation
Transformer oil purification
Food processing
Pasteurizing
Sterilizing
Meat fillers
Freeze drying
Powder processing
Vacuum cooling
Meat tumblers
Meat cutters
Beverage filling
Hospitals and healthcare facilities
Vacuum-assisted closure (VAC)
Medical suction
Surgical vacuum draining
Oil and gas industry
Pipeline drying
Packaging
Blow molding
Liquid packaging
Money packaging
Blister packaging
Clipping machines
Cartoning machines
Tray loading systems
Tray sealers
Thermoforming packaging machines - Forming station
Thermoforming packaging machines - Sealing/evacuation station
Chamber packaging machines free-standing
Plastics processing
SSP recycling
Vacuum bagging
Pneumatic conveying
Injection molding
Thermoforming
Resin transfer molding (RTM)
Woodworking
Clamping on manual working stations
