Product Name:
DOLPHIN LA 0053–0143 A Liquid Ring Vacuum Pump

DOLPHIN are the robust liquid ring vacuum pumps and compressors from Busch. This series encompasses decades of experience in the use and further development of liquid ring technology.

Their proven operating principle provides virtually isothermal (cold) compression which is especially useful for sensitive or hazardous gases.

They are the perfect solution for demanding applications. For example, the evacuation of saturated gases and vapors.

The DOLPHIN series comprises a large variety of sizes and assemblies: single- or two-stage, with a directly flange-mounted motor, or assembled on a base plate, vacuum pumps and compressors.

DOLPHIN LA/LB is our series of robust and reliable liquid ring vacuum pumps in base plate design. Their proven operating principle allows them to be used in many sectors of industry.

Even demanding applications, such as evacuating saturated gases and vapors are possible without problems. Different operating fluids may be used according to process conditions.

Thanks to the modular design, various assemblies are possible. The precisely dimensioned range of sizes, a wide variety of shaft sealing options, choice of accessories and construction materials allows you to find the perfect DOLPHIN LA/LB for your process.

DOLPHIN LA are single-stage vacuum pumps whereas DOLPHIN LB have two stages for a higher vacuum.

Advantages:
1.Robust: Proven technology, durable single-stage construction;

2.Reliable: Extremely high vapor and particle tolerance;

3.Flexible: Wide range of construction materials, including cast iron (EN-GJL-200), many grades of stainless steel and even titanium, ATEX-certified version available (Cat 1(i)/2(o) IIC T5), different operating fluids possible, operation as compressor possible.

Accessories

Partial or total recirculation systems

Liquid separator

Cavitation protection

Heat exchanger

Gas ejector

Wide selection of motors

Non-return valves

Vacuum relief valves

Main Parameters

(ISO 50Hz)

TECHNICAL DATA	DOLPHIN LA 0053 A	DOLPHIN LA 0103 A	DOLPHIN LA 0143 A
Nominal pumping speed	50 m³/h	100 m³/h	140 m³/h
Ultimate pressure	130 hPa (mbar)	130 hPa (mbar)	130 hPa (mbar)
Max. overpressure	2 bar(g)	2 bar(g)	2 bar(g)
Nominal motor rating	1.5 kW	4 kW	4 kW
Nominal motor speed	1450 min⁻¹	1450 min⁻¹	1450 min⁻¹
Noise level (ISO 2151)	72 dB(A)	72 dB(A)	72 dB(A)
Weight approx.	47 kg	52 kg	57 kg

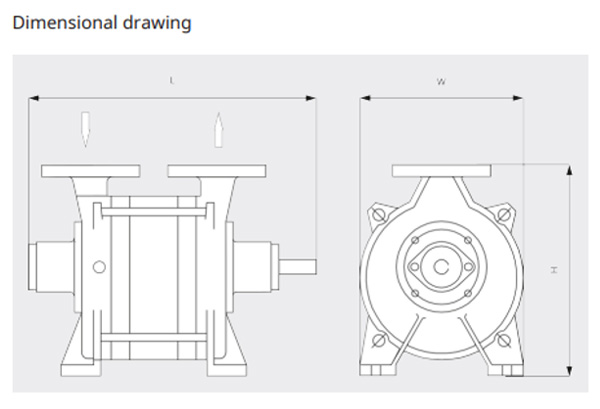

Dimensions (L x W x H)	399 x 250 x 320 mm	439 x 250 x 320 mm	479 x 250 x 320 mm
Gas inlet	DN 40 PN 10	DN 40 PN 10	DN 40 PN 10
Gas outlet	DN 40 PN 10	DN 40 PN 10	DN 40 PN 10

(ISO 60Hz)

TECHNICAL DATA	DOLPHIN LA 0053 A	DOLPHIN LA 0103 A	DOLPHIN LA 0143 A
Nominal pumping speed	60 m³/h	135 m³/h	190 m³/h
Ultimate pressure	130 hPa (mbar)	130 hPa (mbar)	130 hPa (mbar)
Max. overpressure	2 bar(g)	2 bar(g)	2 bar(g)
Nominal motor rating	2.2 kW	4 kW	5.5 kW
Nominal motor speed	1750 min⁻¹	1750 min⁻¹	1750 min⁻¹
Noise level (ISO 2151)	72 dB(A)	72 dB(A)	72 dB(A)
Weight approx.	47 kg	52 kg	57 kg
Dimensions (L x W x H)	574 x 250 x 320 mm	614 x 250 x 320 mm	654 x 250 x 320 mm
Gas inlet	DN 40 PN 10	DN 40 PN 10	DN 40 PN 10
Gas outlet	DN 40 PN 10	DN 40 PN 10	DN 40 PN 10
