Product Name:
DOLPHIN LG 0890/1200 A Liquid Ring Vacuum Pump

DOLPHIN are the robust liquid ring vacuum pumps and compressors from Busch. This series encompasses decades of experience in the use and further development of liquid ring technology.

Their proven operating principle provides virtually isothermal (cold) compression which is especially useful for sensitive or hazardous gases.

They are the perfect solution for demanding applications. For example, the evacuation of saturated gases and vapors.
The DOLPHIN series comprises a large variety of sizes and assemblies: single- or two-stage, with a directly flange-mounted motor, or assembled on a base plate, vacuum pumps and compressors.

DOLPHIN LG/LR is a series of high-capacity liquid ring vacuum pumps. They can be used in many industrial sectors, even for demanding applications. For example, the discharge of particle-laden gases or highly saturated vapors.

Their modular base plate design allows these vacuum pumps to be perfectly adapted to many different industrial processes.

Various assemblies and construction materials are possible, including cast iron (EN-GJL-200) and 316 grade stainless steel.

A wide variety of operating fluids can be used to perfectly match all process requirements.

Advantages:
1.Robust: Proven technology, reliable operation, extremely high vapor and particle tolerance, specially designed for challenging environments like mining, power plants, sugar production, pulp and paper industry, steel production etc.;

2.High performance: High-capacity, high pumping speeds;

3.Flexible:Modular design, choice of cast iron (EN-GJL-200) housing with ductile cast iron impeller or all 316 grade corrosion-free stainless steel material, operating fluids other than water possible, operation as compressor possible.

Accessories
Motorized pumpsets, with gearbox or V-belt drive system, mounted on sturdy steel base frames

Partial or total recirculation systems

Cavitation protection

Gas ejector

Non-return valves

Vacuum relief valves

Main Parameters

(ISO 50Hz)

TECHNICAL DATA	DOLPHIN LG 0890 A	DOLPHIN LG 1200 A

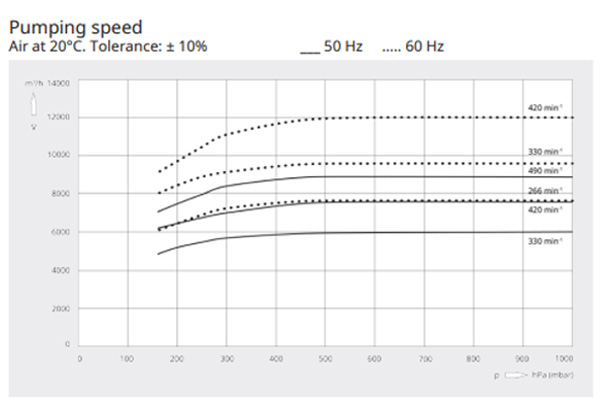

Nominal pumping speed	6000 m³/h	7650 m³/h
Ultimate pressure	160 hPa (mbar)	160 hPa (mbar)
Nominal motor rating	132 kW	160 kW
Nominal motor speed	330 – 490 min⁻¹	266 – 420 min⁻¹
Noise level (ISO 2151)	< 85 dB(A)	< 85 dB(A)
Weight approx.	3880 kg	5760 kg

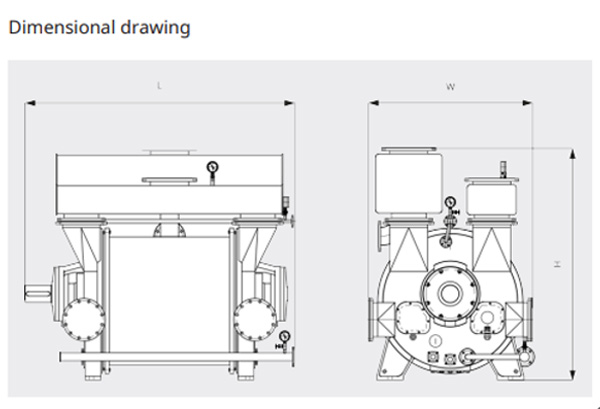

Dimensions (L x W x H)	2370 x 1330 x 1865 mm	2500 x 1550 x 2160 mm
Gas inlet	DN 300 PN 10	DN 350 PN 10
Gas outlet	DN 300 PN 10	DN 350 PN 10

(ISO 60Hz)

TECHNICAL DATA	DOLPHIN LG 0890 A	DOLPHIN LG 1200 A
Nominal pumping speed	8900 m³/h	12000 m³/h
Ultimate pressure	160 hPa (mbar)	160 hPa (mbar)
Nominal motor rating	220 kW	280 kW
Nominal motor speed	330 – 490 min⁻¹	266 – 420 min⁻¹
Noise level (ISO 2151)	< 85 dB(A)	< 85 dB(A)
Weight approx.	3880 kg	5760 kg
Dimensions (L x W x H)	2370 x 1330 x 1865 mm	2500 x 1550 x 2160 mm
Gas inlet	DN 300 PN 10	DN 350 PN 10
Gas outlet	DN 300 PN 10	DN 350 PN 10
