Product Name:

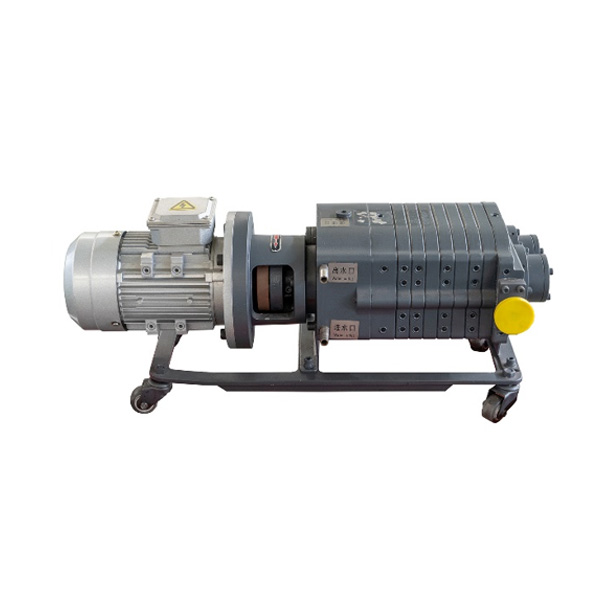

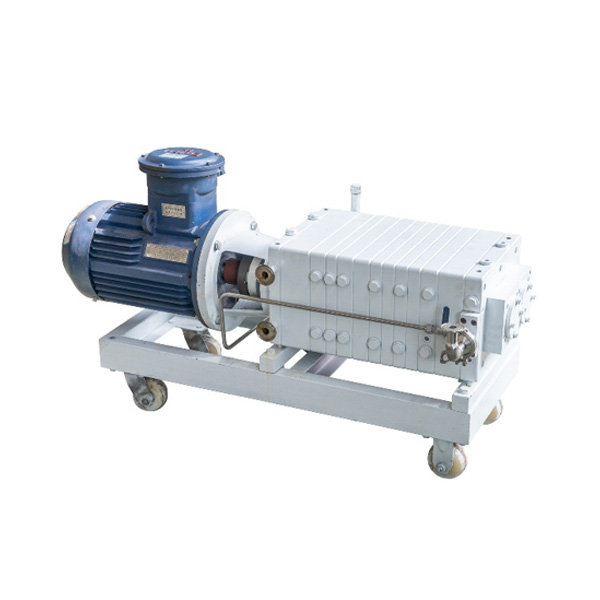

CRT-GZ Series Claw-type Dry Vacuum Pumps

CRT-GZ series dry claw vacuum pump adopts multi-stage rotors in series. The multi-stage pump chambers are connected in series in turn, and each pump chamber has a pair of claw type rotors engaged in conjugation to make synchronous reverse movement.

The first stage pump chamber in the multi-stage pump chamber is the suction stage, and its suction volume is larger than that behind it, forming interstage compression.

Advantages

1.High vacuum: The limit vacuum can reach 1 Pa

2.Ultra quiet: Noise as low as 55dB

3.Low energy consumption: Replace water ring vacuum pump, solve sewage discharge and reduce energy consumption

4.Intelligent: PLC intelligent control, with functions of automatic cleaning, liquid level alarm, vacuum regulation, etc

5.Anticorrosion: New graphite composite materials, acid and alkali resistant and other working conditions are used to solve the corrosion problem of organic solvents

6.Lightweight: The whole machine is made of new aviation aluminum materials, and the weight is less than 30 kg

7.Movable: The bottom of the equipment is equipped with an adjustable movable universal wheel, which is convenient for moving

Model	CRT-GZ4 （horizontal type）	CRT-GZ8 （horizontal type）	CRT-GZ15 （horizontal type）	CRT-GZ30 （vertical type）	CRT-GZ50 （horizontal type）	CRT-GZ70 （vertical type）	CRT-GZ110 （vertical type）	CRT-GZ150 （vertical type）	CRT-GZ200 （vertical type）	CRT-GZ300 （vertical type）	CRT-GZ1600 （horizontal type）
Ultimate vacuum Pa	≤1000	≤1									≤2000
Pumping speed L/s	4	8	15	30	30	70	110	150	200	300	1600
Full load power KW	1.1	2.2	3	5.5	7.5	11	15	18.5	22	37	90
Imput voltage V	380/220	380	380	380	380	380	380	380	380	380	380
Cooling water flow m3/h	0.4	0.4	0.4	0.5	0.5	0.75	0.9	1.1	1.3	1.5	2.5
Cooling water temperature ℃	≤30
Noise level dB	＜65	65	65	70	70	75	75	75	75	80	110
Weight approx kg	45	60/125	70/140	350	350	650	700	750	900	1100	7800
Intake flange	KF15	KF15	KF15	KF25	KF25	DN65	DN65	DN80	DN80	DN100	DN300
Exhaust flange	G1/4	G1/4	G1/4	DN32	DN32	DN65	DN65	DN65	DN65	DN65	DN200
Pump body material	Stainless steel/aluminum/45 # steel
Dimensions (L * W * H)	400400 190	700400 350	780400 350	1100450 350	1100450 350	800700 1300	800700 1400	800700 1500	800700 1550	800700 1800	29001900 1700

OPTIONAL

· Filter

· Silencer

· Optional anticorrosive coating

· Intelligent self-cleaning

· Electric machine: explosion-proof/non-explosion-proof

· Pump body material: steel/aluminum

· Control mode: manual/automatic

· Display screen

· Noise reduction housing

Requirements for vacuum pumps in chemical processes

Due to the harsh working conditions and long working cycle of the chemical process, the vacuum pump must be reliable, durable and stable, and must also have the following properties:

1.Capable of handling vapours from various solvents without damaging the pump

2. It will not pollute the process and environment

3. Waste generated shall be minimized

4. The vacuum pump shall be corrosion resistant

5. Capable of handling flammable gas or steam

Vacuum Solutions:

The limit pressure of claw type dry vacuum pump developed by Shandong Yining Environmental Protection Technology Co., Ltd. is ≤ 1Pa, and the pumping speed is (4~1600) L/s. Our company has developed a claw type dry vacuum pump made of graphite composite materials, which can be applied to the working conditions of strong corrosive media in the chemical industry, such as perchloric acid, hydroiodic acid, sulfuric acid, hydrofluoric acid, hydrobromic acid, hydrochloric acid, nitric acid, etc. At present, the vacuum pump has been used in the chemical industry in evaporation, distillation, drying, concentration and other working conditions.

please click here to get Customer Cases >>> we tailor vacuum solution

Brochure

please click here to get brochure >>> CRT-GZ Series Claw-type Dry Vacuum Pumps
